W series

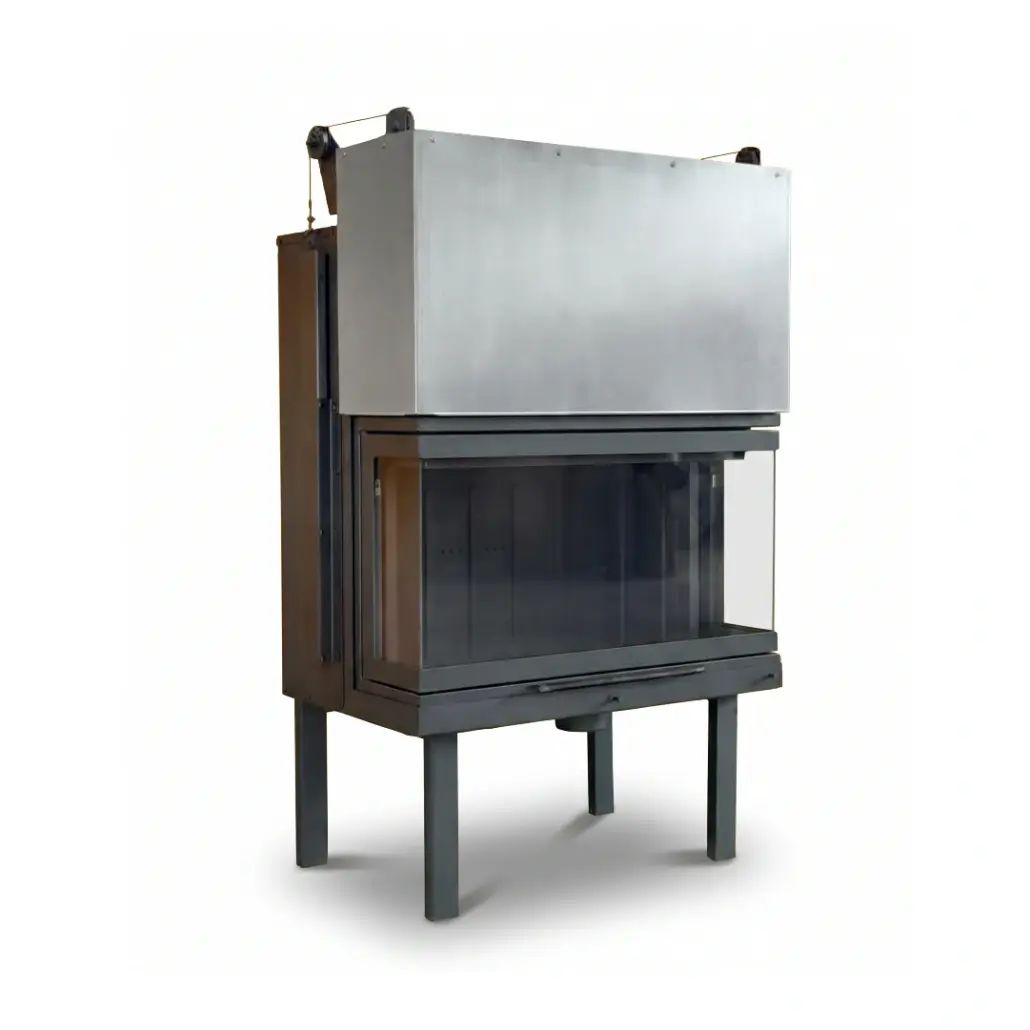

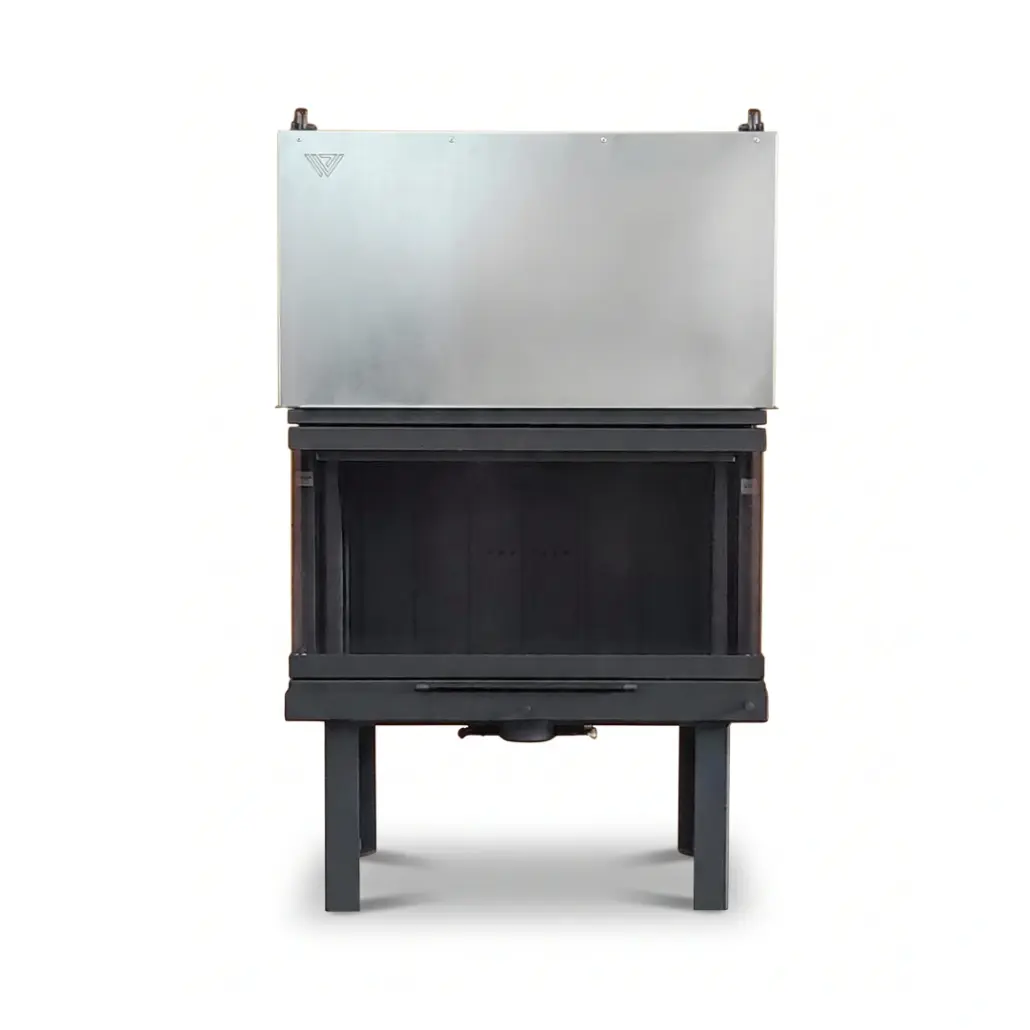

Air-Heating Energy Fireplace W PANORAMA
Code: W-PANORAMA High heat efficiency Side-opening & lift-up door 1 perimeter air chamber With adjustable air & safety key Made of steel with a lining of cast-iron plates Ceramic glass 750 °C, secondary combustion…
- 16,82 kWHeat output
- 220 kgWeight
- 140 × 85 × 55 cmH × W × D
- Built in the WARM factory
- CE marked
Code: W-PANORAMA
- High heat efficiency
- Side-opening & lift-up door
- 1 perimeter air chamber
- With adjustable air & safety key
- Made of steel with a lining of cast-iron plates
- Ceramic glass 750 °C, secondary combustion &
- Air curtain
- Flue diameter 250 mm Ø
- Weight: 220kg.
External dimensions:
- Height
- 140cm
- Width
- 85cm
- Depth
- 55cm
Internal dimensions:
- Width
- 75cm
- Depth
- 45cm
- Nominal heat output (kW)
- 16.82
- Assisted heat output
- 3
- Heat output range (kW)
- 8.41-25.22
- Efficiency (%)
- 77.59
- Nominal fuel consumption (kg/h)
- 4.59
- Fuel consumption range (kg/h)
- 2.29-6.88
- Mean flue gas temperature (°C)
- 231
- CO concentration at 13% O2 (%)
- 0.1170
- Flue diameter (mm)
- 250
- External dimensions (mm)
- 850X540
- Internal dimensions (mm)
- 750X440
