Energy fireplaces

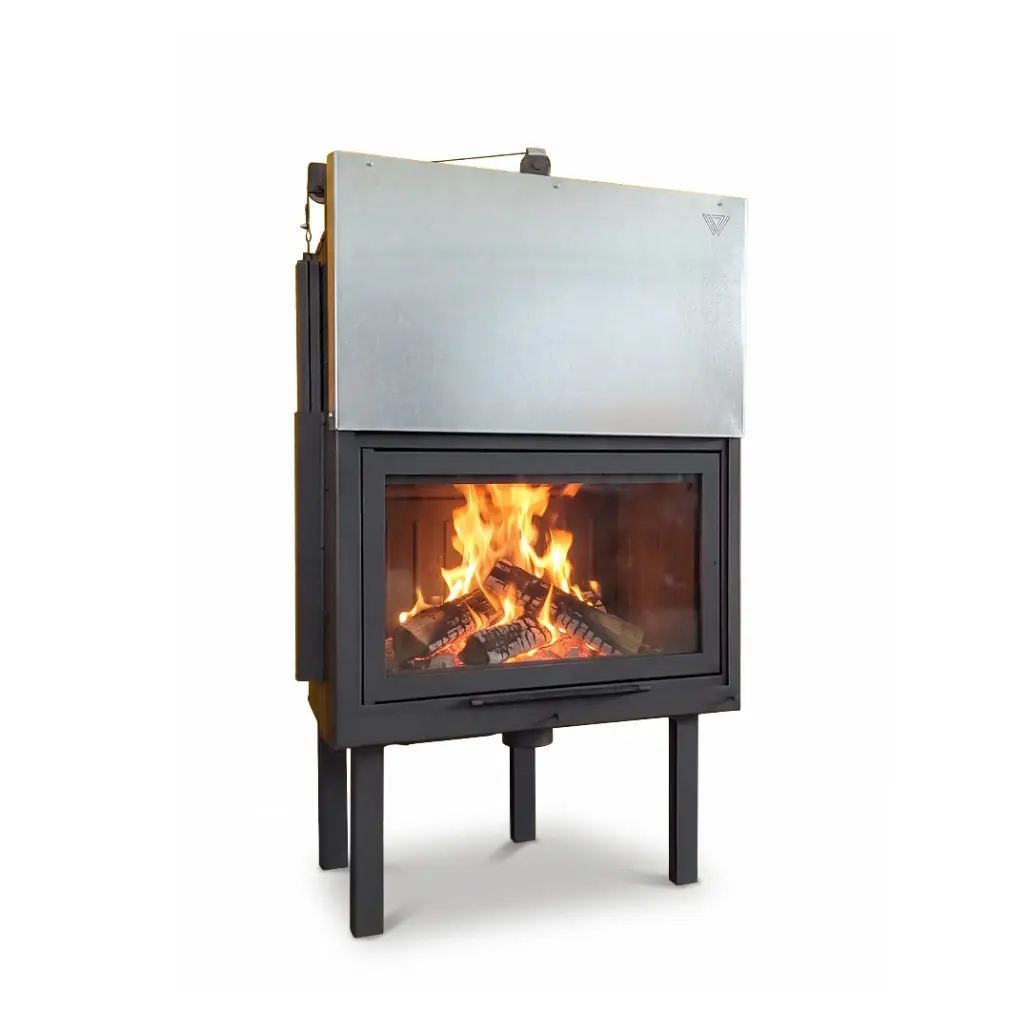

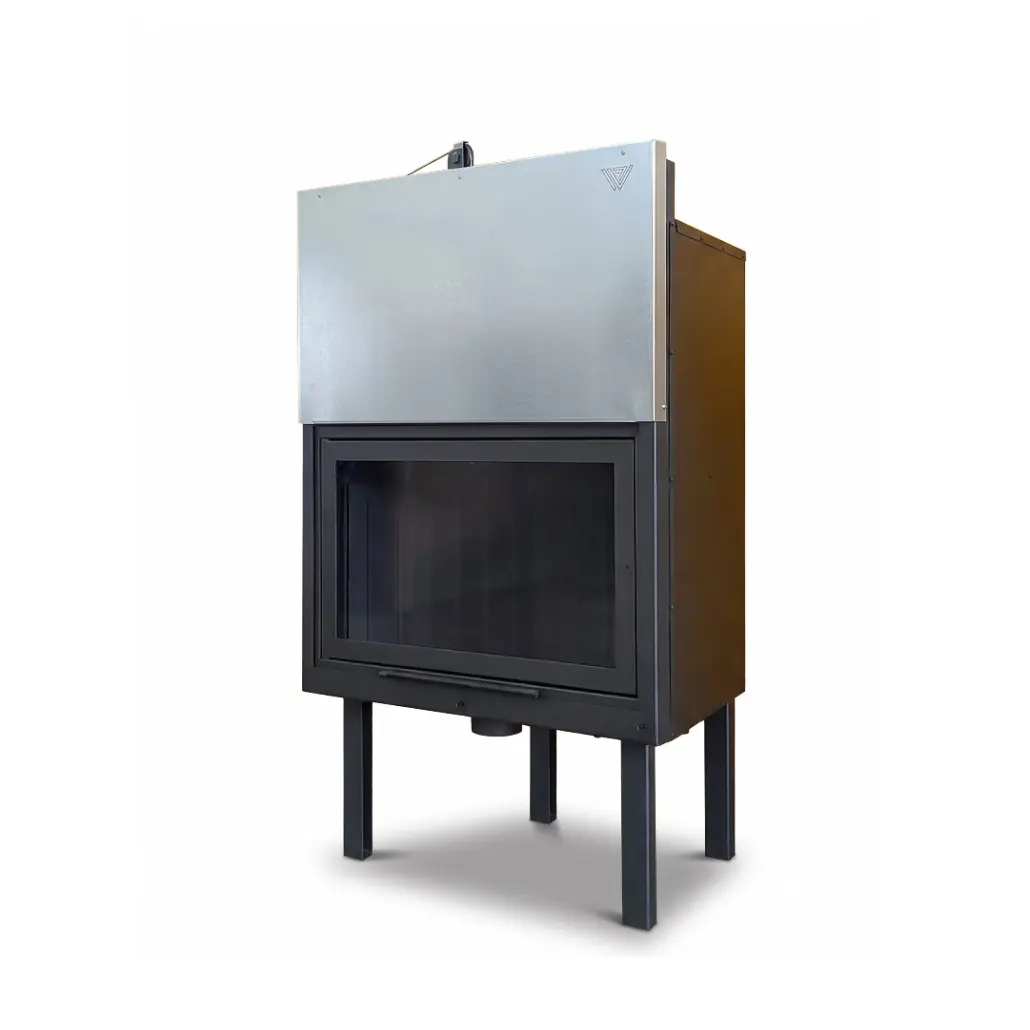

Air-Heating Energy Fireplace W 80 D Straight
Code: W80-D High heat efficiency Side-opening & lift-up door With adjustable air & safety key Made of steel with a lining of cast-iron plates Ceramic glass 750 °C, secondary combustion Air curtain Flue diameter…
- 15,95 kWHeat output
- 194 kgWeight
- 145 × 88 × 58 cmH × W × D
- Built in the WARM factory
- CE marked
Code: W80-D
- High heat efficiency
- Side-opening & lift-up door
- With adjustable air & safety key
- Made of steel with a lining of cast-iron plates
- Ceramic glass 750 °C, secondary combustion
- Air curtain
- Flue diameter 250 mm Ø
- Weight: 194kg.
External dimensions:
- Height
- 145cm
- Width
- 88cm
- Depth
- 58cm
Internal dimensions:
- Width
- 73cm
- Depth
- 46cm
- Nominal heat output (kW)
- 15.95
- Assisted heat output
- 3
- Heat output range (kW)
- 7.98-23.93
- Efficiency (%)
- 77.73
- Nominal fuel consumption (kg/h)
- 4.35
- Fuel consumption range (kg/h)
- 2.17-6.52
- Mean flue gas temperature (°C)
- 232
- CO concentration at 13% O2 (%)
- 0.1116
- Flue diameter (mm)
- 250
- External dimensions (mm)
- 880X580
- Internal dimensions (mm)
- 730X460
